Zipcord Interconnect Cable

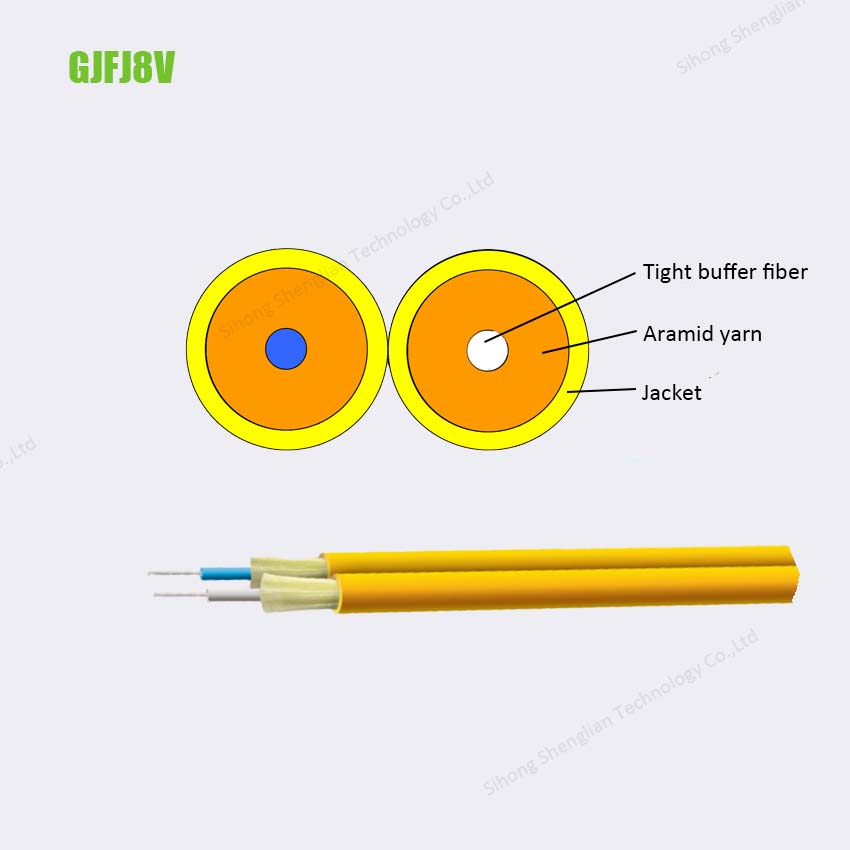

GJFJ8V Zipcord cable use Ф900μm or Ф600μm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber is wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a figure 8 PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket.

Characteristic

Tight Buffer Fiber,  ease of stripping,  excellent flame-retardant performance

Aramid yarns as strength member make cable have excellent tensible strength

Figure 8 structure jacket facilitate embranchment

The jacket anti-corrosion,anti-water,anti-ultraviolet radiation, flame-retardant and harmless to environment etc.

Application

Duplex Optical fiber patch cord  or pigtail

Indoor cable distribution

Inerconnect between communication equipments

Technical parameters

Cable Type Cable Diameter Cable Weight
(kg/km)
TBF Diameter
(µm)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
GJFJ8V Φ1.6 1.65±0.1
3.6±0.2
7.6

600±50







100/200







200/1000







20D/10D
(D: TBF Diameter)

GJFJ8V  Φ1.8 1.8±0.1
3.7±0.2
7.8
GJFJ8V Φ2.0 1.95±0.1
4.0±0.2
8

900±50

GJFJ8V Φ3.0 2.85±0.1
5.8±0.2
14

Fiber

Fiber Type (core/cladding dimension) 8.3/125, 50/125, 62.5/125

Transmission Characteristics

SMF 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(dB/km) ≤0.40/0.30 ≤3.5/1.5 ≤3.5/1.5
Minimum Bandwidth(Mhz·km) …… ≥400/400 ≥160/500

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
