Waterproof Pig-tail Cable

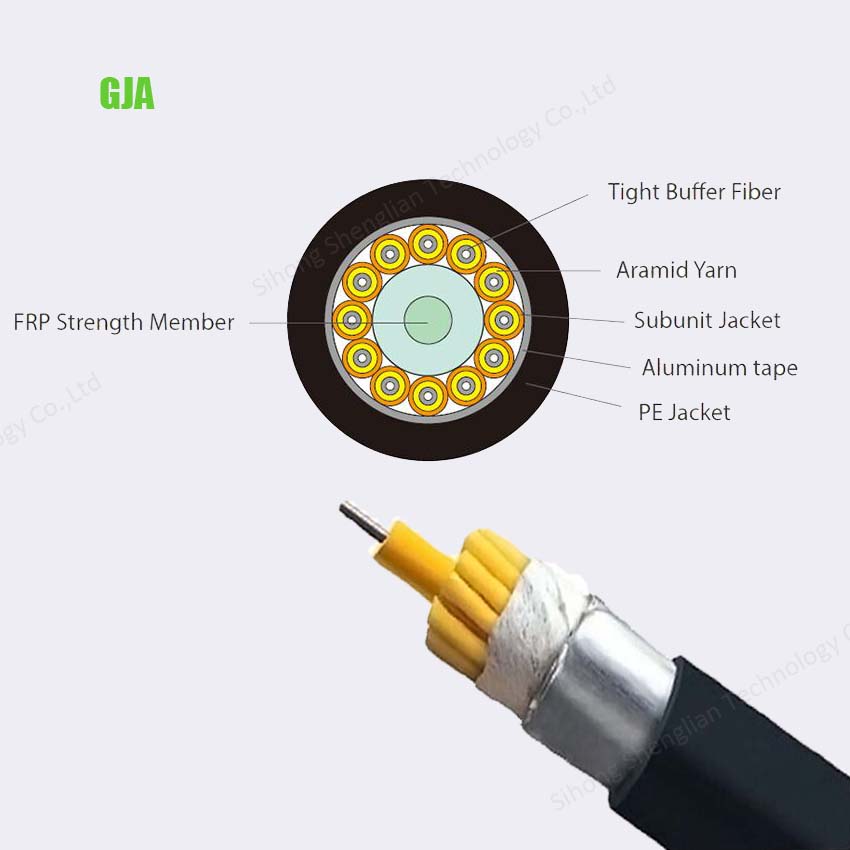

GJA  water pig-tail cable elements: Simplex cable(Φ900µm tight buffer fiber,aramid yarn as strength member) as subunits;  2-12 simplex cable are stranded around the non-metallic central strength member into a compact and circular cable core, then wrap winding;  An aluminum polyethylene laminate (APL) is applied around the cable core;  The cable is completed with a PE jacket.

Characteristics

Stranded non-metallic strength member structure ensure the cable endure larger tensile strength.

The jacket is  anti-corrosion , anti-water and anti ultraviolet radiation etc.

APL is moisture resistance.

Scientific design, rigorous processing

Application

Indoor any purpose cable distribution

Interconnect from outdoor to indoor for optical cable distribution equipment

Technical Parameters

Cable Type Cable Diameter
(mm)
Cable Weight
(kg/km)
TBF Diameter
(µm)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
GJA 2-4 9 65

900±50



200/660



300/1000



20D/10D
(D: TBF Diameter)

GJA 6 10 75
GJA 08 11.0 125
GJA 12 13.5 155

Fiber

Fiber Type (core/cladding dimension) 8.3/125, 50/125, 62.5/125

Transmission characteristics

SMF 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(dB/km) ≤0.40/0.30 ≤3.5/1.5 ≤3.5/1.5
MinimumBandwidth(Mhz·km) …… ≥400/400 ≥160/500

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
