Single core armored cable

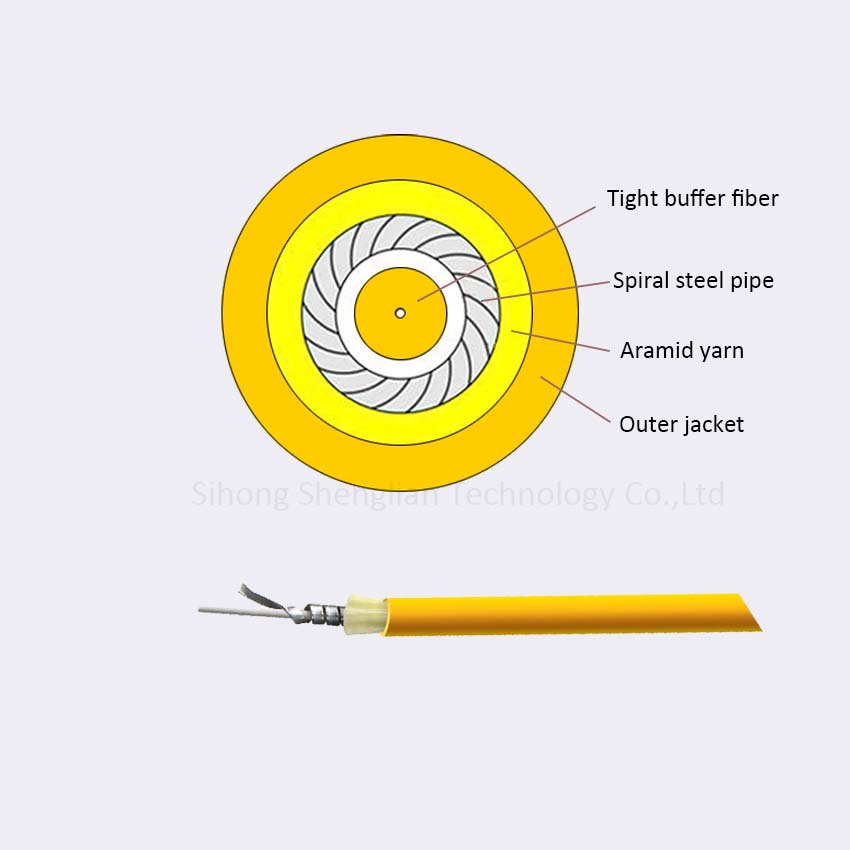

Single core armoured cable consists of Spiral stainless steel pipe, wrapped closely optic fiber, aramid yarn and outer jacket.

Characteristics

  • Strong tensile strength and crush resistance for being protected by armored stainless steel pipe
  • Flame-retardant PVC/LSZH/PE/TPU etc. outer jacket
  • Compact, light, high integration lever for the cable

Applications

  • Armored patch cord
  • Indoor  cable distribution
  • Communication wiring of army field

Technical Parameters

Cable Type Cable Diameter
(mm)
TBF Diameter
(µm)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
Attenuation(dB/km)
1330/1550nm   850/1300nm
1core 3.0 900±50 150/300 3000/4000 60D/30D
(D: TBF Diameter)
≤0.40/0.30   ≤3.0/1.0
2cores
