Simplex cable

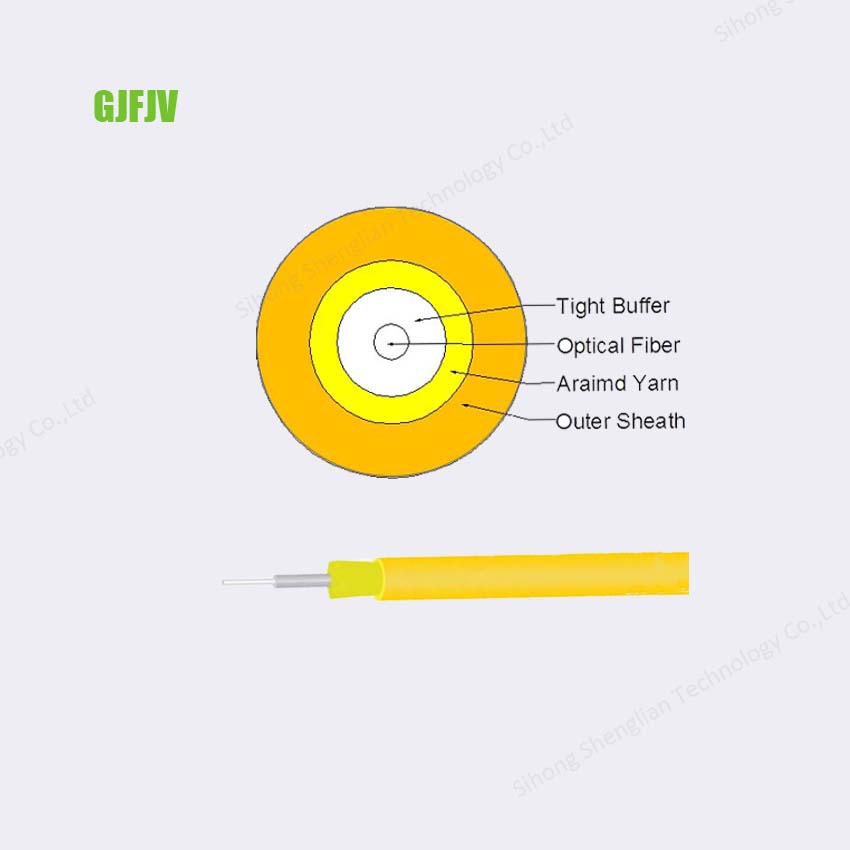

GJFJV simplex cable use single Ф900μm or Ф600μm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber is wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant) jacket.



Characteristics

  • Tight buffer fiber ease of stripping
  • Aramid yarn as strength member make cable have excellent tensible strength
  • The jacket anti-corrosion,anti-water,anti-ultraviolet radiation
  • flame-retardant and harmless to environment etc.

Applications

  • Fiber optic patch cord or pigtail
  • Indoor cable distribution
  • Interconnect between communication equipments

Technical Parameters

Cable Type Cable Diameter Cable Weight
(kg/km)
TBF Diameter
(µm)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
GJFJV Φ1.6 Φ1.65±0.05 3

600±50





60/100





100/500





20D/10D
(D: TBF Diameter)

GJFJV Φ1.8 1.85±0.05 3.2
GJFJV Φ2.0 Φ1.95±0.05 3.3

900±50

GJFJV Φ2.4 Φ2.4±0.05 5
GJFJV Φ3.0 Φ2.9±0.05 6.5

Fiber

Fiber Type (core/cladding dimension) 8.3/125, 50/125, 62.5/125

Transmission Characteristics

SMF 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(dB/km) ≤0.40/0.30 ≤3.5/1.5 ≤3.5/1.5
Minimum Bandwidth(Mhz·km) …… ≥400/400 ≥160/500

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
