Self-supporting Bow-type drop cable

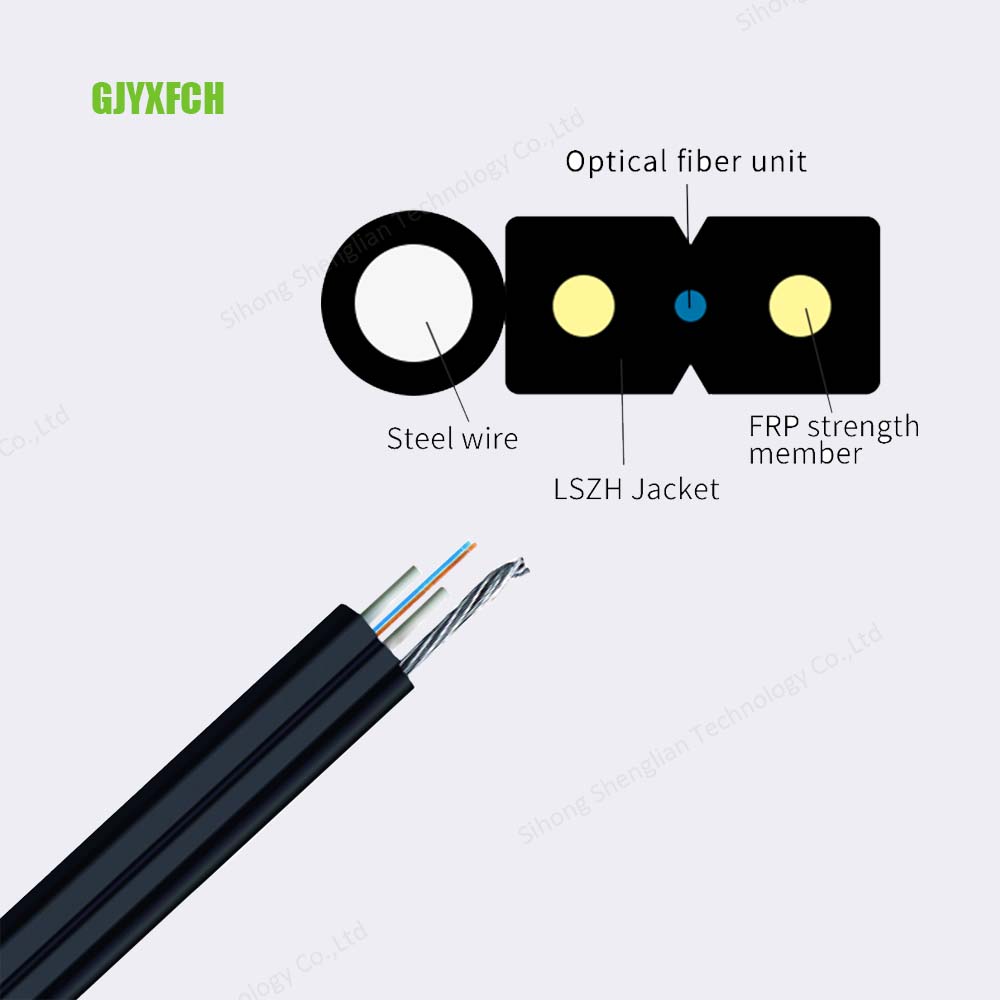

GJYXFCH. The optic fiber is positioned in the center. Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.  A steel wire is applied as the additional strength member. The cable is completed with a black or color LSZH sheath.

Characteristics

  • High bandwidth and excellent communication transmission property.
  • Good performance of crush resistance and tensile strength.
  • Simple structure, light weight and high practicability.
  • Easily strip and splice, simplify the installation and maintenance.
  • Low smoke, zero halogen and flame retardant sheath, eco-friendly.

Technical Parameters

Cable Type Cable Diameter
(mm)
Cable Weight
(kg/km)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
Attenuation(dB/km)
1310/1550nm
Storage Operating
Temperature
GJYXFCH
1core
(2.0±0.2)*(5.0±0.2) 22 30/60 300/1000 30/15 ≤0.40/0.30 -40℃~+60℃
GJYXFCH
2cores
(2.0±0.2)*(5.0±0.2) 22
GJYXFCH
4cores
(2.0±0.2)*(5.6±0.2) 22.3
