Round Ribbon Fiber Cable

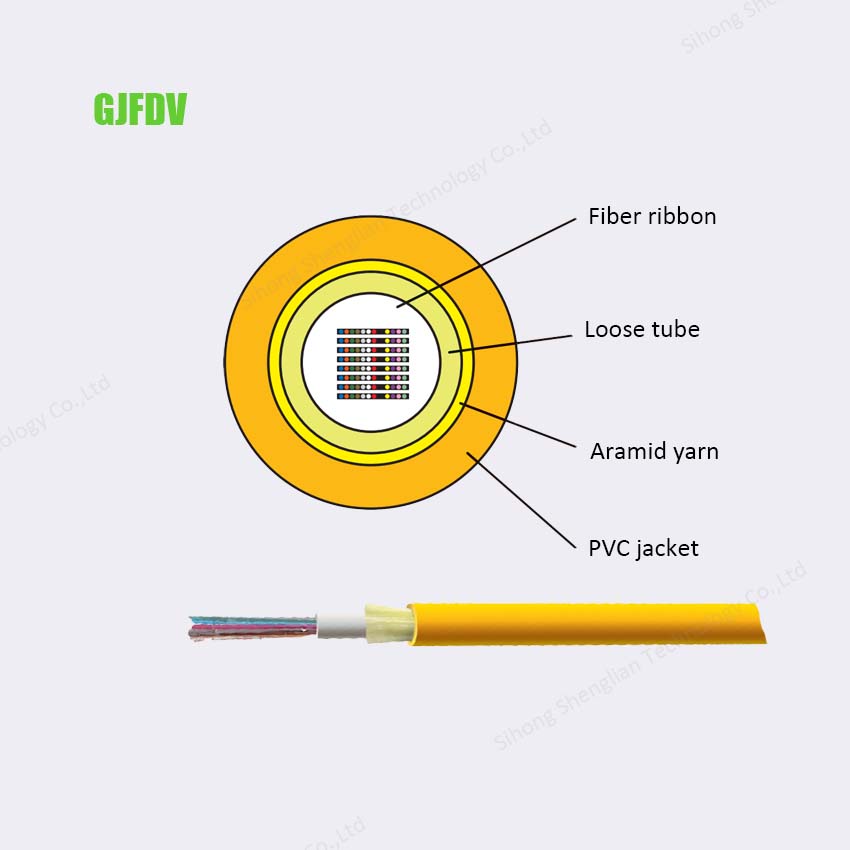

GJFDV Round ribbon cable use fiber ribbon(s) as optical communication medium. Fiber ribbon(s) put in LSZH loose tube then warpped with a layer of aramid yarn as strength member units, and the cable is completed with LSZH jacket.

Characteristics

  • High-integrated fiber ribbon deisgn
  • Excellent tensible strength for high qualtiy aramid yarn as strength member
  • Anti-corrosion, water-proof, UV resistance, flame -retardant and eco-friendly, etc.
  • Suited to SM fiber
  • Scientific design, rigorous processing

Applications

  • Indoor cable distribution
  • Interconnect between equipments

Technical Parameters

Cable Type Cable Diameter
(mm)
Cable Weight
(kg/km)
TBF Diameter
(µm)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
GJFDV48 10.3 84 900±50 100/200 200/500 20D/10D
(D: TBF Diameter)
GJFDV72 10.8 89
GJFDV96 11.6 99
GJFDV144 13.7 126

Fiber

Fiber Type (core/cladding dimension) 8.3/125, 50/125, 62.5/125

Transmission characteristics

SMF 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(dB/km) ≤0.40/0.30 ≤3.5/1.5 ≤3.5/1.5
MinimumBandwidth(Mhz·km) …… ≥400/400 ≥160/500

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
