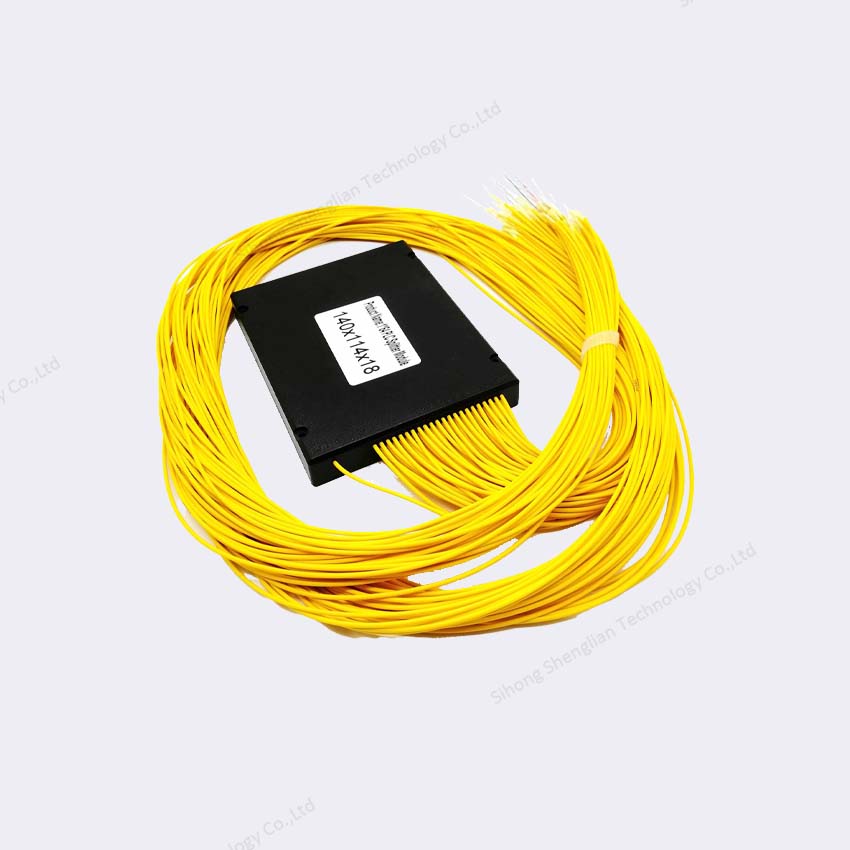

1*64 PLC Splitter Module

1*64 PLC Splitter Module  (1*8 1*16 1*32… available), ABS Box 140*114*18 mm,  Single mode
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Pigtailed ABS splitter is most commonly used in the PON networks.

Characteritics

  • Completed protection for inner optical components and cable
  • Convenient and reliable installation.
  • Bending Insensitive G657A fiber
  • Low Insertion Loss
  • High Polarization Extinction Ratio & Excellent Uniformity

Aplications

  • Various connection and distribution products(outdoor fiber distribution box)
  • FTTx Deployments(GPON/BPON/EPON), etc.
  • Access/Metro Network cabinets.

Specifications

Product Name PLC Splitter Box Type Configuration Type 1*8  1*16  1*32  1*64 as required
Fiber Type Single mode G.657A1 Connector Type Pigtail or SC/UPC etc. as require
Insertion Loss ≤17.0dB Return Loss ≥50dB
Polarization Dependent Loss ≤0.3dB Cable Jacket LSZH
