Multi Purpose Distribution Cable

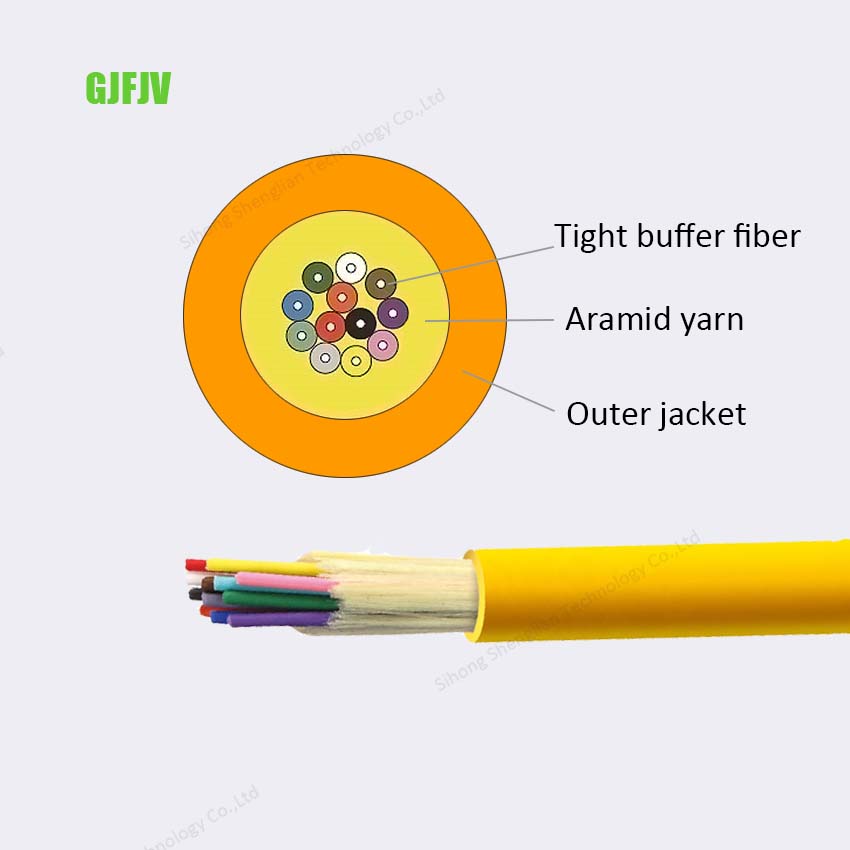

GJFJV Multi-purpose distribution cable, is used 2-24cores Tight Buffer Fibre as optical communication medium,the TBFs wrapped with a layer of aramid yarns as strength member units,and the cable is completed with PVC or LSZH jacket.

Characteristic

  • Excellent striping performance for Tight Buffer Fiber
  • Strong tensible strength for aramid yarn as strength member
  • Anti-Corrosion, Anti-water, anti-ultra radiation, flame-retardent and eco-friendly.

Applications

  •   Multi optic fiber jumper
  •  Indoor cable distribution

Technical Parameters

Cable Type Cable Diameter
(mm)
Cable Weight
(kg/km)
TBF Diameter
(µm)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
GJFJV 02 5.0±0.2 19 900±50 200/660 300/1000 20D/10D
(D: TBF Diameter)
GJPFJV04 5.1±0.2 21
GJPFJV06 5.3±0.2 23
GJPFJV 08 5.9±0.2 28
GJPFJV 12 6.6±0.2 34
GJPFJV16 7.5±0.2 46
GJPFJV24 8.5±0.2 57

Fiber

Fiber Type (core/cladding dimension) 8.3/125, 50/125, 62.5/125

Transmission characteristics

SMF 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(dB/km) ≤0.40/0.30 ≤3.5/1.5 ≤3.5/1.5
Minimum Bandwidth(Mhz·km) …… ≥400/400 ≥160/500

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
