Multi Purpose Distribution Break-out Cable

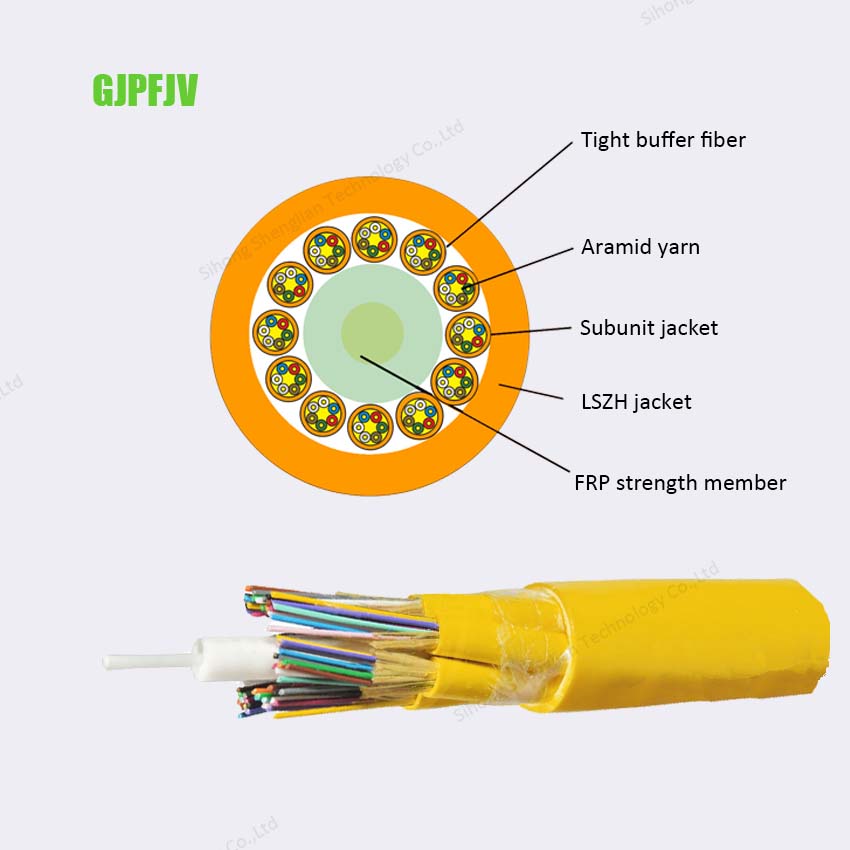

GJPFJV multi-purpose distribution break out cable, use 6-fiber subunits(Φ900µm tight buffer fiber,aramid yarn as strength member). A FRP locates in the center of the core as strength member. The subunits are stranded around the FRP. The cable is completed with a LSZH(Low Smoke, Zero Halogen, Flame -retardant) sheath.

Characteristic

  • FRP structure ensures the cable high tensile strength
  • Compact structure with high fiber capacity and density
  • The jacket anti-corrosion,anti-water,anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
  • All dielectric structure protect it from electromagnetic influence.

Applications

  • Indoor cable distribution
  •  Backbone distribution cable

Technical Parameters

Cable Type Cable Diameter
(mm)
Cable Weight
(kg/km)
TBF Diameter
(µm)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
GJPFJV 24 15.5 98



900±50





400/1320





300/1000





20D/10D
(D: TBF Diameter)

GJPFJV48 16.0 268
GJPFJV 60 18.5 355
GJPFJV 96 20.2 446
GJPFJV 108 22.0 449
GJPFJV144 25.1 480

Fiber

Fiber Type (core/cladding dimension) 8.3/125, 50/125, 62.5/125



Transmission characteristics

SMF 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(dB/km) ≤0.40/0.30 ≤3.5/1.5 ≤3.5/1.5
MinimumBandwidth(Mhz·km) …… ≥400/400 ≥160/500

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
