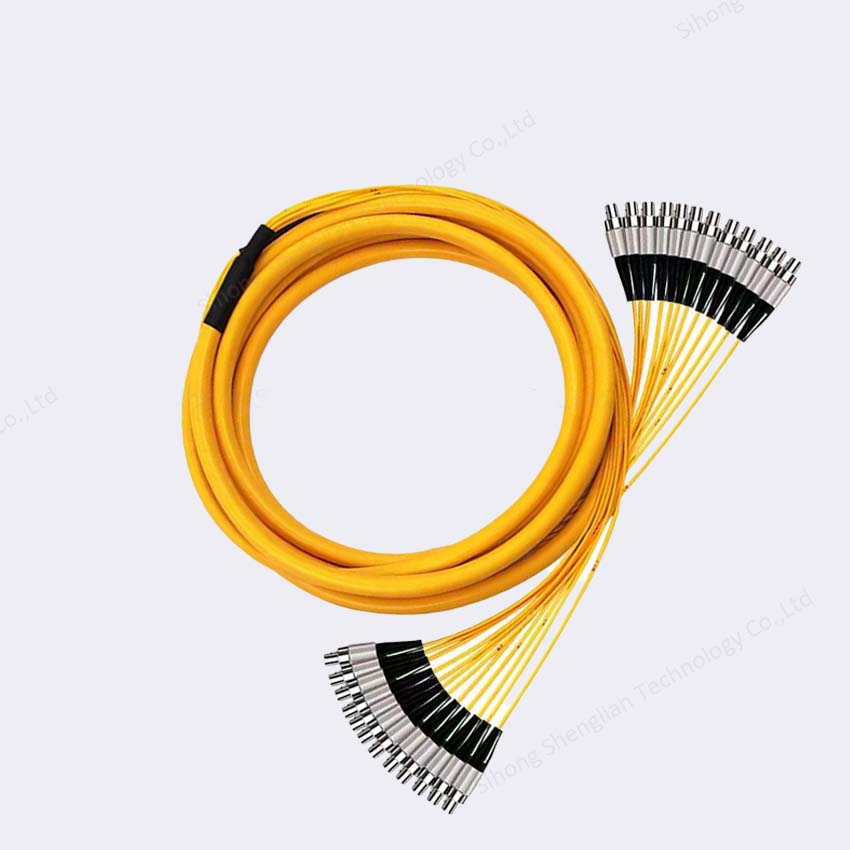

Multi optical fiber jumper FC-FC-12cores

Fiber patch cord FC-FC-SM-G652D-12Cores branch Breakout

Characteristics

  • Low insertion loss
  • Ferrule end surface pre-domed
  • Excellent mechanical endurance
  • Good repeatability and Exchangeability

Applications

  • Fiber optic communication networks
  •  Optical access network
  • Data processing networks

Specifications

Fiber modeSingle ModeMulti Mode

Parameter PC UPC APC UPC
Operating Wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss ≤0.3dB ≤0.2dB ≤0.3dB ≤0.2dB
Return Loss ≥40dB ≥50dB ≥60dB ≥30dB
Fiber Type G652D,G655, G657A1, G657A2, G657B3 OM1/OM2/OM3/OM4/OM5
Fiber Brand YOFC, Corninng
Exchange ≤0.2dB
Repeartability ≤0.2dB
Durability > 1000 times
Connectors Type SC, LC, FC, ST, MTRJ, MPO, etc.
Fiber  Count 4, 6, 8, 10, 12, 24, 36, 48, 72, 96, 144 Cores
Sheath Material PVC, LSZH
Cable Diameter φ3.0mm, φ2.0mm, φ0.9mm or Specify
Length (M) Customized
