MPO connectors multi-fibers jumper

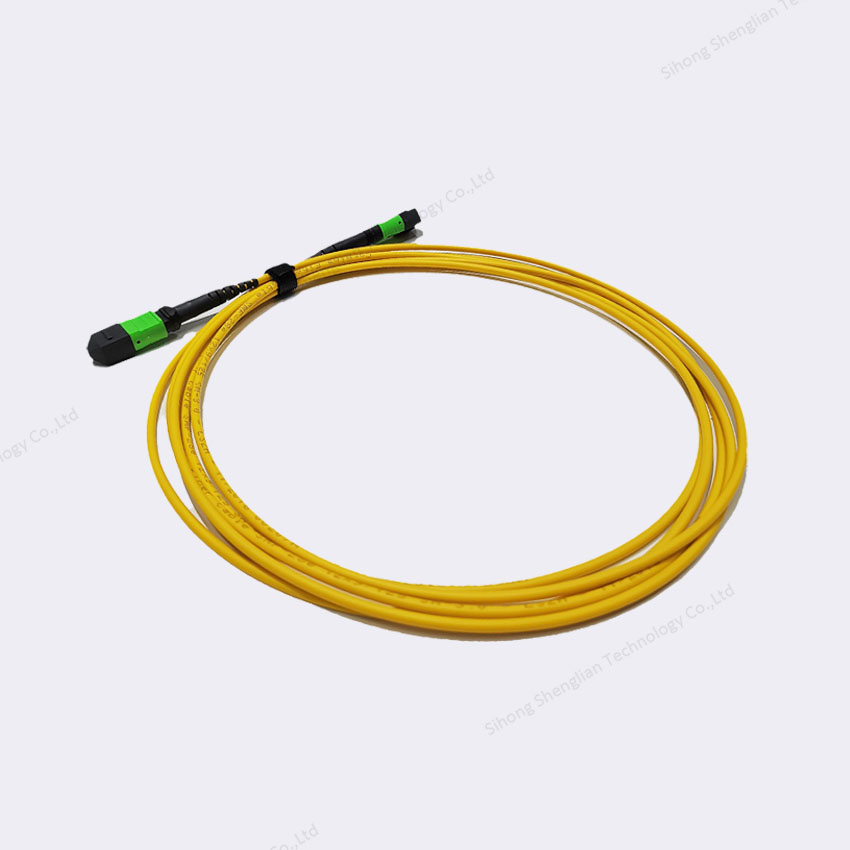

12 Core SM G652D MPO-MPO Fiber Optic Patch Cord

Characteristics

  •  Low insertion loss and back reflection loss
  •  High density, good echangeability
  • Good Durability
  • High temperature stability

Applications

  • CATV
  • Active dvice termination
  • Telecommunication networks
  • Local Area Networks(LANs)
  • Data Processing networks
  • Test Equipment
  • Premise installations
  • Wide Area Networks(WANs)

Specifications

Fiber modeSingle ModeMulti Mode

Parameter PC UPC APC UPC
Operating Wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss ≤0.3dB ≤0.2dB ≤0.3dB ≤0.2dB
Return Loss ≥40dB ≥50dB ≥60dB ≥30dB
Fiber Type G652D,G655, G657A1, G657A2, G657B3 OM1/OM2/OM3/OM4/OM5
Fiber Brand YOFC, Corninng
Exchange ≤0.2dB
Repeartability ≤0.2dB
Durability > 1000 times
Connectors Type SC, LC, FC, ST, MTRJ, MPO, etc.
Fiber  Count 4, 6, 8, 10, 12, 24, 36, 48, 72, 96, 144 Cores
Sheath Material PVC, LSZH
Cable Diameter φ3.0mm, φ2.0mm, φ0.9mm or Specify
Length (M) Customized
