Mobile Cable GJPFJU

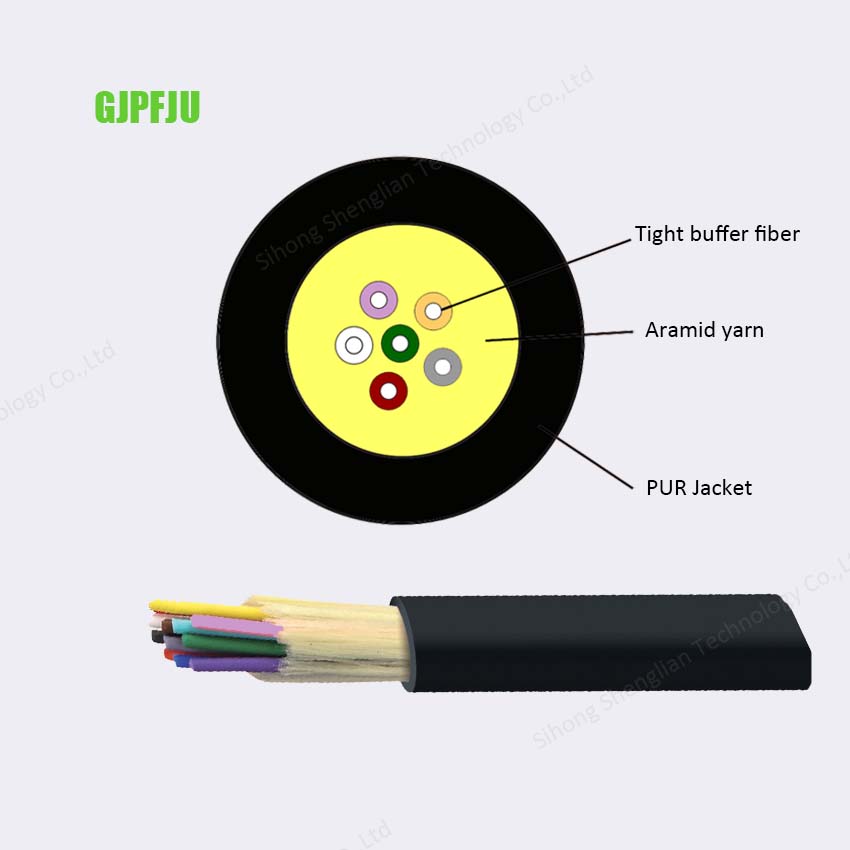

GJPFJU mobile cable use several tight buffer fibers as optic communication medium. The tight buffer fiber is wrapped with a layer a aramid yarn. The cable is completed with a PUR jacket.

Characteristics

  •  Easily strip and splice
  • Excellent tensile strength, flame-retardant and anti-torsion performance
  • All dielectric structure protect it from electromagnetic influence

Applications

  • Military communication system cable distribution
  • Communication between radars or oil field, mining etc.

Technical Parameters

Cable Type Cable Diameter
(mm)
Cable Weight
(kg/km)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
Attenuation(dB/km)
1310/1550nm
Storage Operating
Temperature
GJPFJU 2cores Φ6.0±0.2 30 1500/2000 1000/5000 20D/10D ≤0.40/0.30 -40℃~+60℃
GJPFJU 4cores Φ6.0±0.2 30
GJPFJU 6cores Φ6.0±0.2 33
