Flat fiber Ribbon Cable

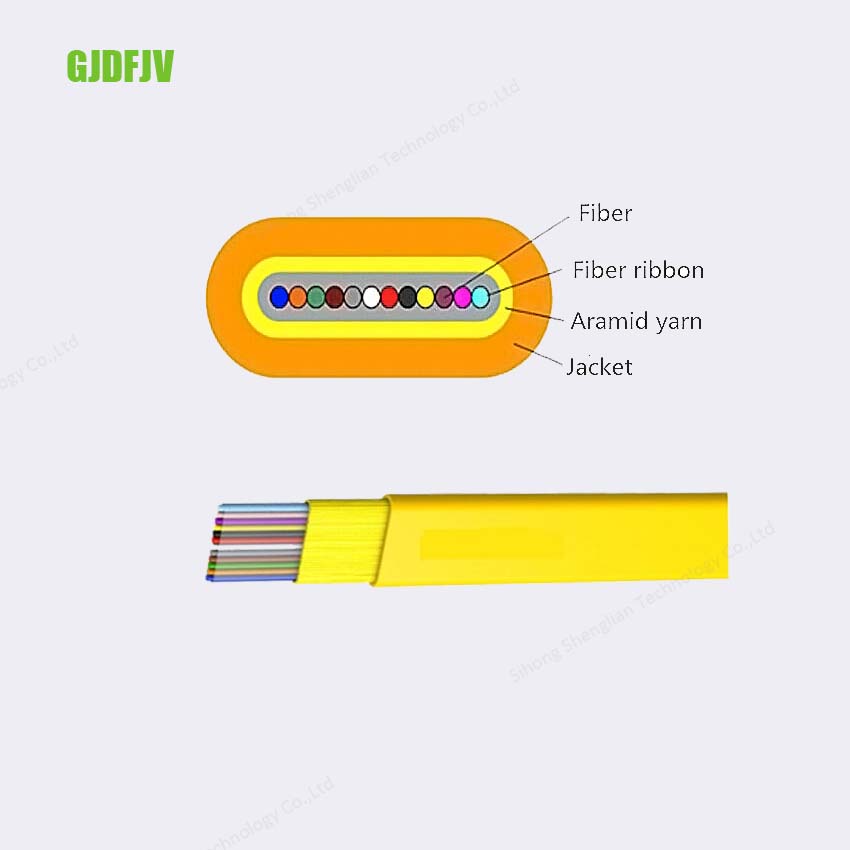

GJDFJV flat fiber ribbon cable, use fiber ribbon as optical ribbon medium. Its is wrapped with a layer of aramid yarn as strength member. The cable is completed with a flat PVC or LSZH Jacket.

Characteristics

  • Aramid yarn as strength member makes cable have excellent tensible strength
  • Compact structure with high fiber density, good performance of flexibility and crush resistance.
  • All dielectric structure protects it from electromagnetic interference
  • Suited to SM fiber.
  • Scientific design, rigorous processing

Applications

  • Ribbon optical fiber jumper and pigtail
  • Indoor cable distribution for any purpose
  • Interconnect between distribution equipment.

Technical Parameters

Cable Type Cable Diameter
(mm)
Cable Weight
(kg/km)
TBF Diameter
(µm)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
GJDFJV04, 06 2.4±0.2
3.3±0.2
6.8 900±50 60/100 100/500 20H/10H
(H: Cable Axis)
GJDFJV08, 12 2.4±0.2
5.0±0.2
9.4

Fiber

Fiber Type (core/cladding dimension) 8.3/125

Transmission characteristics

SMF
1310/1550(nm)
Attenuation(dB/km) ≤0.40/0.30
MinimumBandwidth(Mhz·km) ……

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
