Figure 8 Cable – GYTC8A

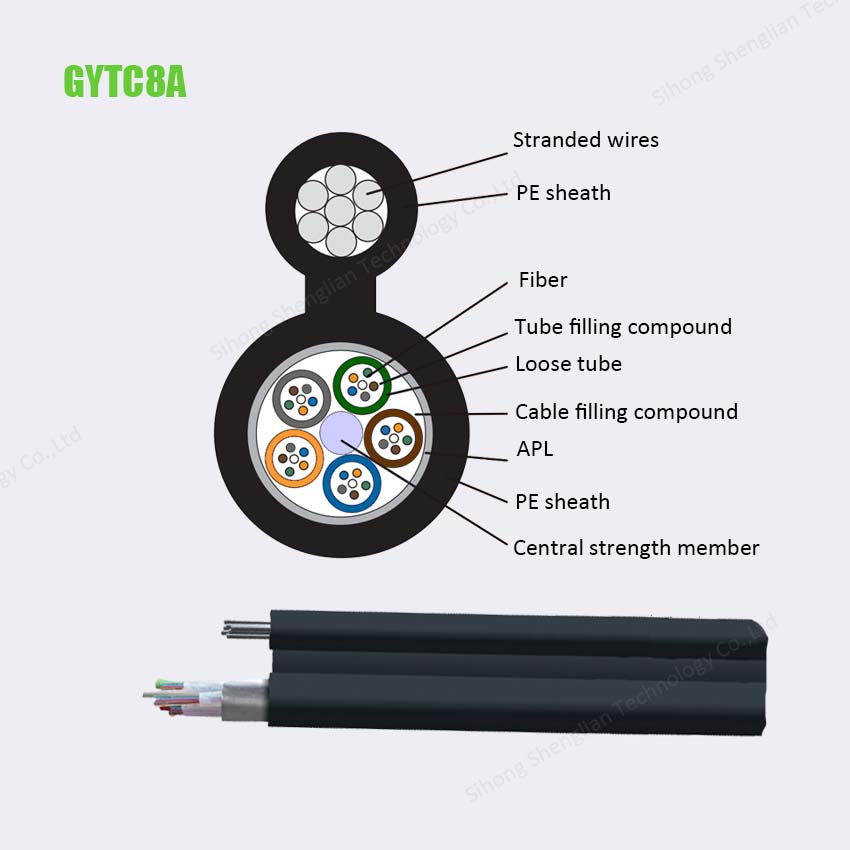

GYTC8A  Φ250 fibers are positioned  in a loose tube which is made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center as metallic strength member. The tubes and fillers are stranded around the strength member into a compact and circular core, and then it is wraped with an Aluminum Polyethylene Laminate(APL).  Additional strong stranded wires are applied. The cable is completed with a black PE sheath.

Category:

Charateristics

High tensile strength of stranded wires

Good mechanical and temperature performance

High strength loose tube tlhat ils lhydrolysis resistant

Special tube filling compound ensures a critical protection of fiber

Applications

Self-supporting aerial installation

Technical Parameters

Cable Type Tubes Cable Diameter
(mm)		 Tensile Strength
Long/Short term
(N)		 Crush Resistance
Long/Short term
(N/100cm)		 Bending Radius
Dynamic/Static
(mm)		 Attenuation(dB/km)
1310/1550nm		 Storage Operating
Temperature
GYTC8A  2-6cores 1 6.8*9.2*18.0 600/1500 300*1000 20D/10D ≤0.40/0.30 -40℃~+70℃
GYTC8A  8-12cores 2
GYTC8A 14-18cores 3
GYTC8A 20-24cores 4
GYTC8A  26-30cores 5
