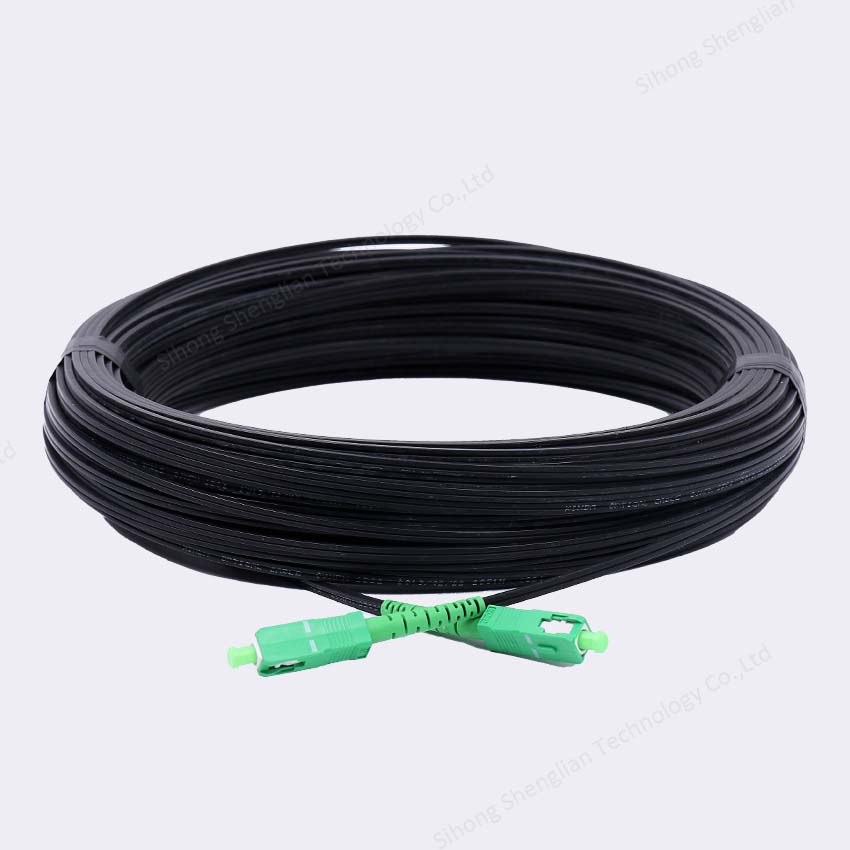

Drop Fiber – Patch Cord

1C G657A1, 1mm steel wire, 2frp*0.5mm each, strength member LSZH jacket,  with SCAPC-SCAPC connector

Characteristics

  •  Low insertion loss high return loss
  • Excellent mechanical endurance
  • High credibility and stability
  • Good in repeatability and exchangeability

Applications

  • Fiber optic communication networks
  • Optical access network
  • Data processing networks



Specifications

Item Data
Name FTTH Drop Cable Patch Cord SCAPC-SCAPC LSZH
Fiber Type G652D/G657A1/G657A2
Core Qty 1, 2,… as required
Outer jacket meterial PVC/LSZH
Wavelength 1310/1550 (nm)
Insertion loss ≤0.2dB or ≤0.15dB
Return loss ≥50dB(PC,UPC);≥60dB(APC)
Repeatable ≤0.1dB
Interchangeability ≤0.2dB
Plug times ≥1000
Tensile strength ≥100N
