Bow-type drop cable for duct

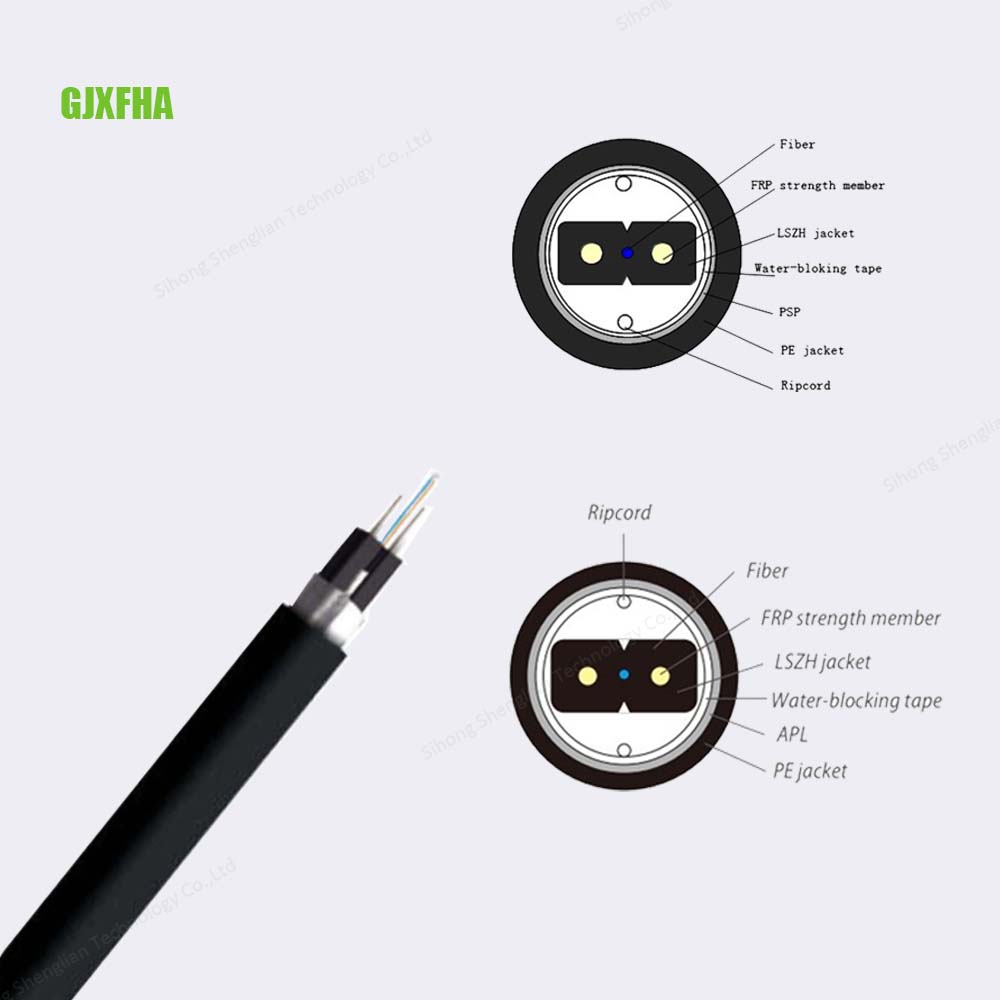

GJXFHA  The optic fiber unit is positioned in the center. Two parralle FRP are placed at the two sides. The cable is wrapped with a black LSZH sheath as a subunit. Ripcord are wrapped inside, APL or PSP is not only for stengthening tensile and crush resistance, but also as the moisture barrier. The cable is completed with a PE jacket.

Characteristics

High bandwidth and excellent communication transmission property.

Good performance of crush resistance.

Simple structure, light weight and high practicability.

Easily strip and splice, simplify the installation and maintenance.

Low smoke, zero halogen and flame retardant sheath, eco-friendly.

APL , PSP enhancing moisture-proof.

Technical Parameters

Cable Type Cable Diameter
(mm)
Cable Weight
(kg/km)
Tensile Strength
Long/Short term
(N)
Crush Resistance
Long/Short term
(N/100cm)
Bending Radius
Dynamic/Static
(mm)
Attenuation(dB/km)
1310/1550nm
Storage Operating
Temperature
GJXFHA
1core
Φ7.0 46 30/60 300/1000 30/15 ≤0.40/0.30 -40℃~+60℃
GJXFHA
2cores
Φ7.0 46
