Access Building Cable

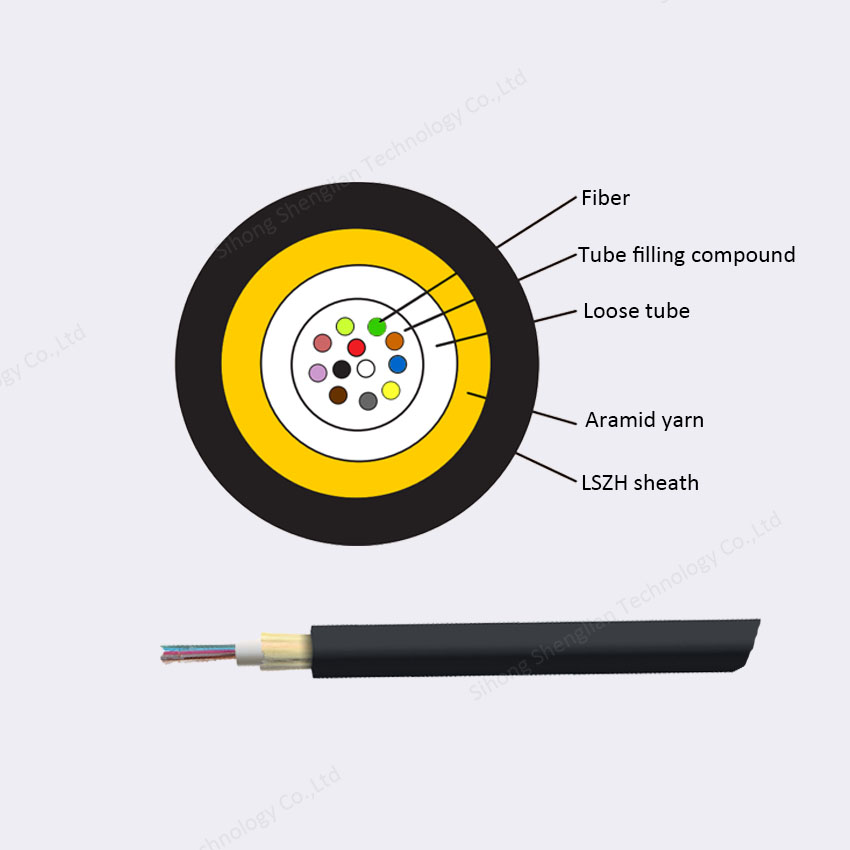

Φ250 fibers are positioned  in a loose tube which is made of high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is covered with a layer of aramid yarn as strength member. The cable is completed with a LSZH sheath.

Category:

Characteristics

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Excellent crush resistance and flexibility
  • Small diameter, light weight and easy installation

Technical Parameters

Cable Type Cable Diameter
(mm)		 Unitube Diameter
(mm)		 Tensile Strength
Long/Short term
(N)		 Crush Resistance
Long/Short term
(N/100cm)		 Bending Radius
Dynamic/Static
(mm)		 Attenuation(dB/km)
1310/1550nm		 Storage Operating
Temperature
GJPFJU 2-12cores Φ6.2±0.2 3.0 200/600 300/1000 20D/10D ≤0.40/0.30 -40℃~+60℃
GJPFJU 14-24cores Φ7.0±0.2 4.0
